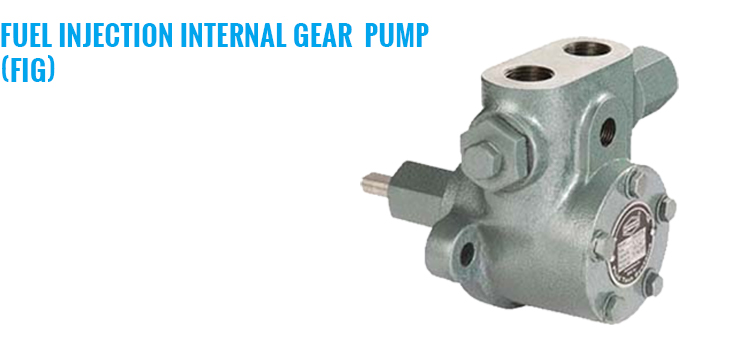

Fuel Injection Internal Gear Pump (FIG)

  • Home
  • |
  • Fuel Injection Internal Gear Pump (FIG)
post

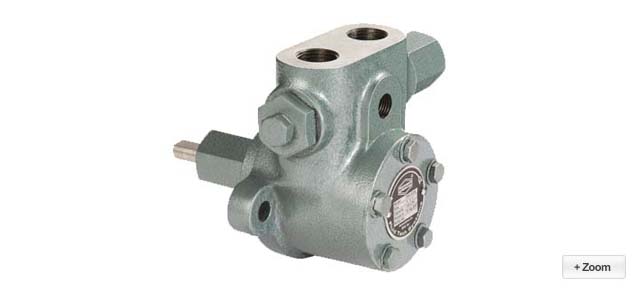

Fuel Injection Internal Gear Pump, LDO Pump Manufacturer

We, Rotofluidpumps, are pleased to inform our all precious clients that the well awaited Fuel Injection Internal Gear pump offered by us is available in the market. The pump is made up of graded cast iron. Being India’s top known Internal Gear Pump, and LDO Pump manufacturer and exporter, it is our core responsibility to serve the industries in all manner.

Fluid Tech Systems offer “ROTOFLUID” brand internal gear pump Model “FIG” (Fuel injection Internal Gear Pump, LDO Gear Pump, Burner Firing Gear Pump, Boiler Firing Gear Pump, FIG Pump, HSD Gear Pump, Diesel Filling Gear Pump) which is high precision and fuel pressuring type positive displacement internal gear pump which prepared by graded cast iron. These nitrated gear, shafted rotor give better performance with closed tolerance to give long life. Model “FIG” is flange mounted. These pumps are self priming type produces maximum, vacuum determined by the cavity between the gear teeth. These pumps modified profile teeth cutting to give accurate capacity with in the pressure range. These pumps are capable to run liquid up to 500 CST viscosity and up to temperature 150ºc. The sealing is done with mechanical seal to ensure zero leakage.

The suction and delivery connections are available in 3/8",1/2",3/4"and 1" size. Model “FIG” pump come in a capacity Range of 60 LPH to 6000 LPH with operating pressure up to 35 kg/cm², yet for continuous duty maximum recommended pressure is 30kg/cm². These pumps can also be used at 2800 RPM. The capacity will have approx double of normal duty condition. These pump can be run both clock and anti clock direction as per requirement.

Material of Construction

Part Material For FIG
Body IIS.210 FG 220 C.I. Grade
Eccentric IIS.210 FG 220 C.I. Grade
Idler Gear SAE-8620
Rotor shaft SAE-8620
Sealing Mechanical seal
Piston EN-8
Adjusting Screw EN-8
Spring Spring Steel

Technical Specification

Model Capacity in LPH at 1440 RPM Suction & Delivery Size Motor HP
3 kg/cm² 30 kg/cm²
FIG - S60 60 3/8" x 3/8" 0.25 1.0
FIG - S90 90 3/8" x 3/8" 0.25 1.0
FIG - S120 120 3/8" x 3/8" 0.25 1.0
FIG - A150 150 1/2" x 1/2" 0.25 1.5
FIG - A300 300 1/2" x 1/2" 0.25 1.5
FIG - A450 450 1/2" x 1/2" 0.25 2.0
FIG - A600 600 1/2" x 1/2" 0.25 2.0
FIG - B1000 1000 3/4" x 3/4" 0.75 3.0
FIG - B1500 1500 3/4" x 3/4" 0.75 3.0
FIG - B2000 2000 3/4" x 3/4" 0.75 5.0
FIG - B2500 2500 3/4" x 3/4" 0.75 5.0
FIG - C3000 3000 1" x 1" 1.5 7.5
FIG - C4500 4500 1" x 1" 1.5 10.0
FIG - C6000 6000 1" x 1" 1.5 15.0

Features

  • Higher suction lift.
  • Self priming pump and Capacity to create vacuum up to 600/650 mm hg
  • Flange and Foot mounting option.
  • Optionally available in investment casting.
  • Zero leakage mechanical seal.
  • Maximum temperature up to 200º c.
  • Continues duty pump.
  • Internal lubrication systems.
  • Available with or without built-in pressure relief valve and external by pass.
  • Pressure regulator, progressively adjustable.

Application

  • Highly used in fuel injection Burners, Boilers, Furnaces.
  • Booster application in diesel locomotive.
  • Force feed lubrication.
  • Eventually with separate pressure regulating valves.
  • For gas oil, medium, heavy and very heavy oil.
  • Filter pumping.
  • Pumps for PHF units.
  • Pump for hydraulic oil.
  • Pump suitable for LDO, FO, HSD and LSHS.
