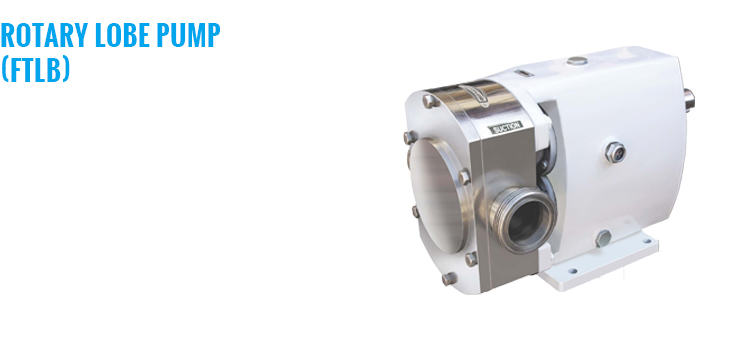

Rotary lobe pump For Pumping Viscous Liquids
"ROTOFLUID" brand Stainless Steel Rotary Lobe Pump Model-FTLB are compact, efficient, bi-directional positive displacement pump for the transfer of corrosive chemicals, food & cosmetic and other viscous chemicals.
Liquids Can Handle
- All types of Food Products (Clarified Butter/Fruit Pulp/Vegetable Sauce/ Vegetable Oil/Animal Oil/Fish Oil)
- Sugar Solution
- Glycerine, Glycol etc
- Cosmetic products (Shampoo/Body Lotion/Baby Oil/Hair Oil/Shower Gel/Soap Solution etc)
- Paints & Resins
- Corrosive Viscous Chemicals
Material of Construction
| Part | Material |
| Pump Chamber | ss - 316 |
| Tri-Lobe Rotor | ss - 316 |
| Top Cover | ss - 316 |
| Shaft | ss - 316 |
| Shaft Seal | Mech. Seal |
| Gear | EN - 24 |
| Casing | CI |
| Back Cover | CI |
| Bearing Spaler | CI |
| Bearing | SKF |
Model & Performance Chart
| Pump Model | Suction & Delivery | Displacement @ 100 RPM |
Max.Speed (RPM) | Pressure (kg/cm2) | Weight (Kg.) | ||
| LPM | US GPM | Horizontal Porting | Vertical Porting | ||||
| FTLB - 100S | 1" | 5 | 1.4 | 1000 | 7 | 15 | 16 |
| FTLB - 100L | 1" | 8 | 2.25 | 1000 | 7 | 17 | 18 |
| FTLB - 150S | 1½" | 12 | 3.38 | 1000 | 7 | 28 | 30 |
| FTLB - 150L | 1½ | 18 | 4.78 | 1000 | 7 | 30 | 31 |
| FTLB - 200S | 2" | 26 | 7.03 | 1000 | 7 | 52 | 55 |
| FTLB - 200L | 2" | 38 | 10.15 | 1000 | 7 | 55 | 58 |
| FTLB - 250S | 2½" | 55 | 14.64 | 1000 | 7 | 104 | 110 |
| FTLB - 250L | 2½" | 79 | 20.87 | 1000 | 7 | 109 | 115 |
| FTLB - 300S | 3" | 116 | 30.65 | 600 | 7 | 150 | 150 |
| FTLB - 300L | 3" | 175 | 44.39 | 600 | 7 | 158 | 158 |
| FTLB - 400S | 4" | 261 | 68.70 | 500 | 7 | 258 | 258 |
| FTLB - 400L | 4" | 354 | 93.26 | 500 | 7 | 264 | 264 |
Application Industries
- Food & Beverages Industry
- Pharmaceutical Industry
- Dyeing & Printing Houses
- Chemical Industry
- Cosmetic Industry
Salient Features
- Working Pressure upto 7 Bar
- Size from 1" to 4” to handle flow from 5 LPM to 1062 LPM
- Can handle maximum viscosity 20000 CST
- Designed to handle fluid at temperature upto 120°C
- Vertical and Horizontal type.
- High strength three pieces stainless steel construction in the pump makes its easily cleanable and maintainable.
- Available connection is SMS Union, TC Connection and Flange.
