Crusher Gear Oil Pump (FTCP)

  • Home
  • |
  • Crusher Gear Oil Pump (FTCP)
post

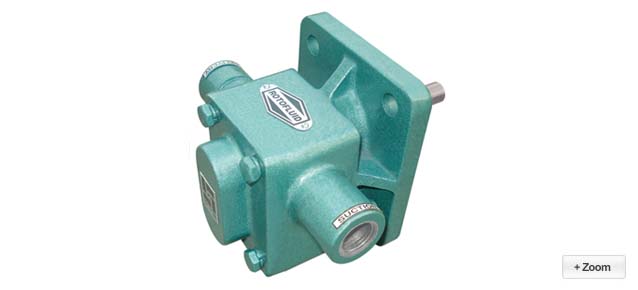

Crusher Gear Oil Pump, Spare Gear Pump

Fluid Tech Systems offers “ROTOFLUID” brand gear pump Model “FTCP” which is widely used in crusher machine. Model “FTCP” having simple two pieces Cast Iron construction which is spur profile carton steel gears shrunk fitted on alloy steel hardened of grind inished shaft as gear firmly supported 4 nos. of self lubricated sintered bronze bush bearing which ensure smooth running. These pumps can be run in either direction with change in inlet-outlet port position.

Due to the design of Model “FTCP” Pumps give pressure up to 15 kg/cm² and maximum temperature 80ºC. Suction and delivery available in this model is only 1/2".

Material of Construction

Part Material For FTCP
Body IS.210 FG 220 C.I. Grade
Back Cover IS.210 FG 220 C.I. Grade
Rotor/Stator Shaft EN-19
Gear EN-8
Bearing[Bushes] Non Ferrous Sintered Bronze
Sealing Neoprene oil Seal
Key for coupling EN-8

Features

  • Self Priming pump.
  • Bi-directional positive displacement pump.
  • High Efficiency.
  • Low noise.
  • Spur gear design.

Application

  • Heavy duty stone crusher machine.
